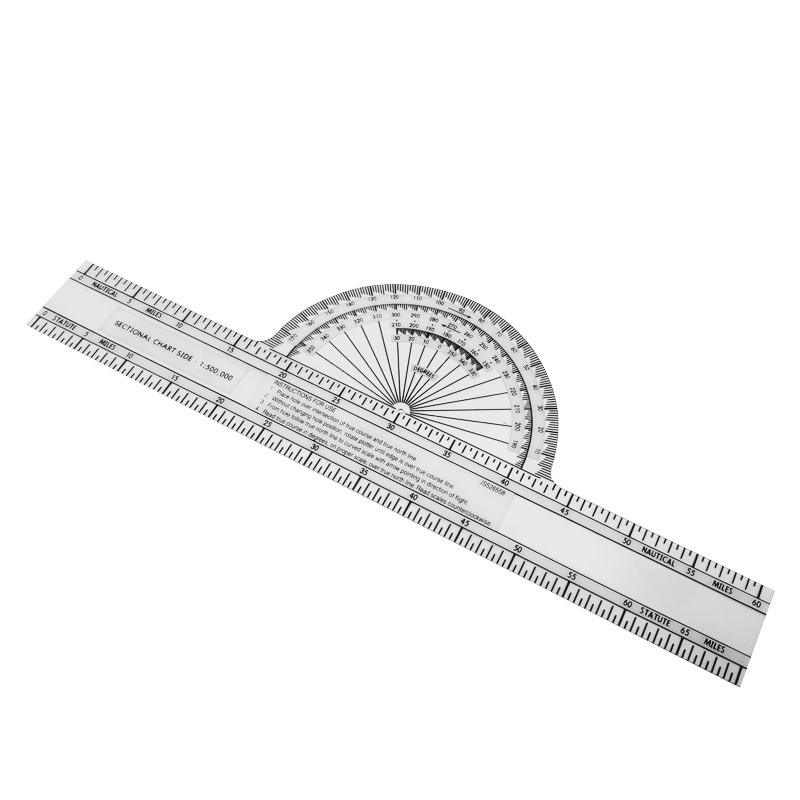

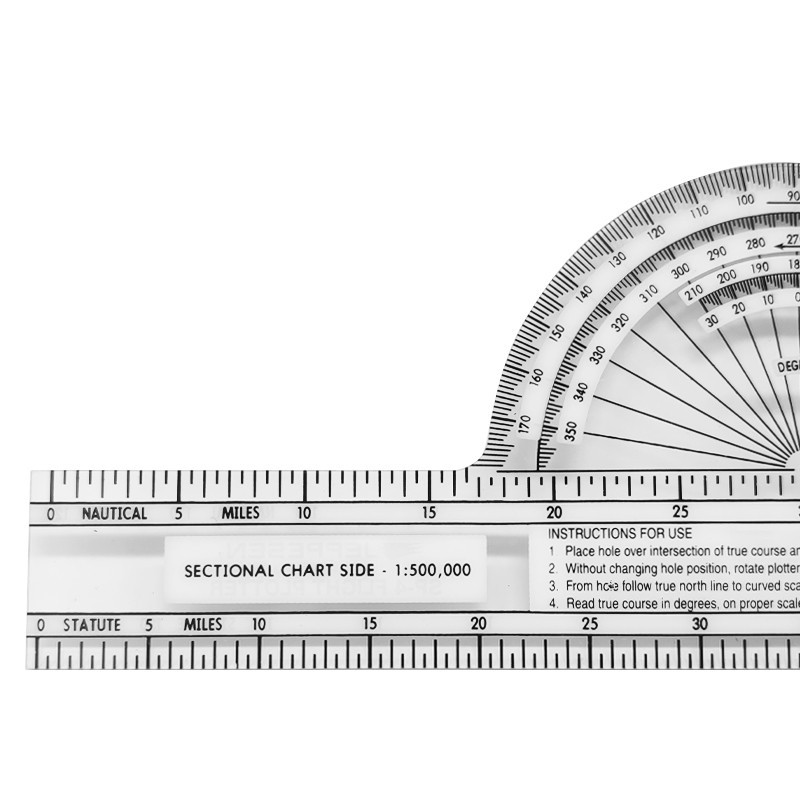

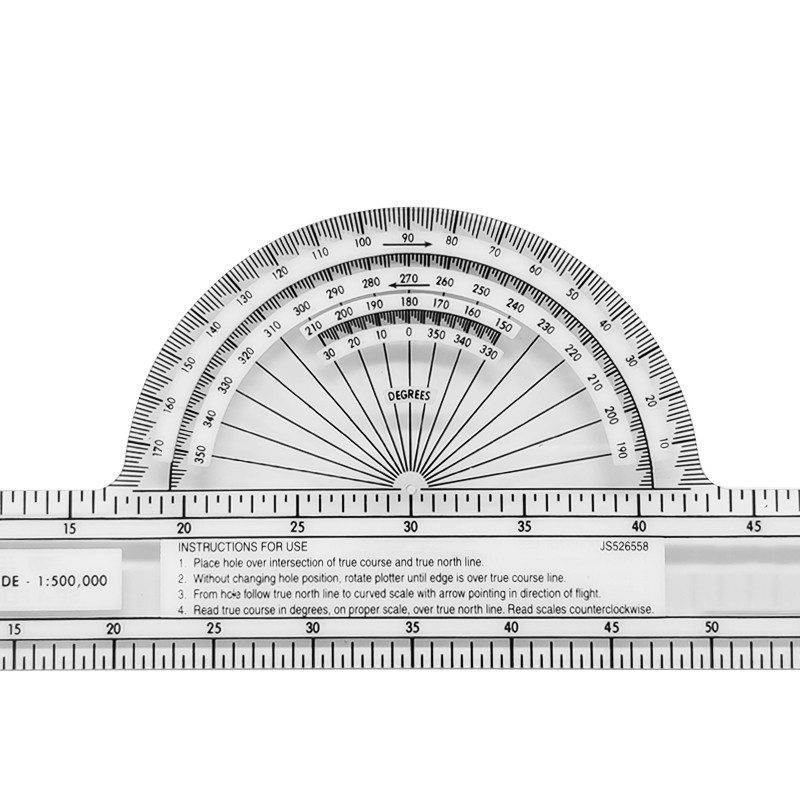

Sectional Fixed Plotter for Pilots, SP-4

Item No.: PH02-038

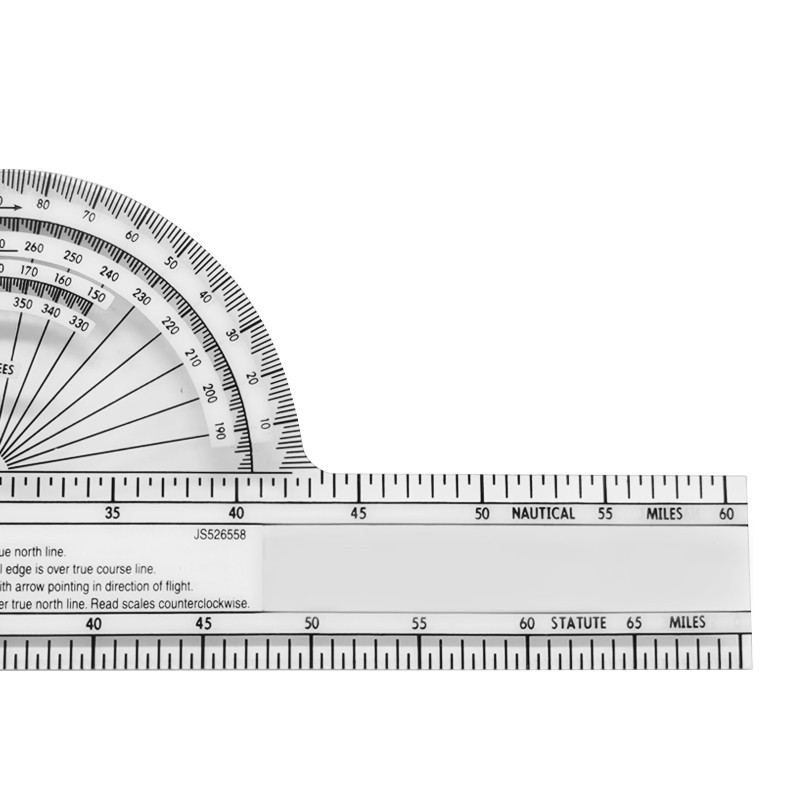

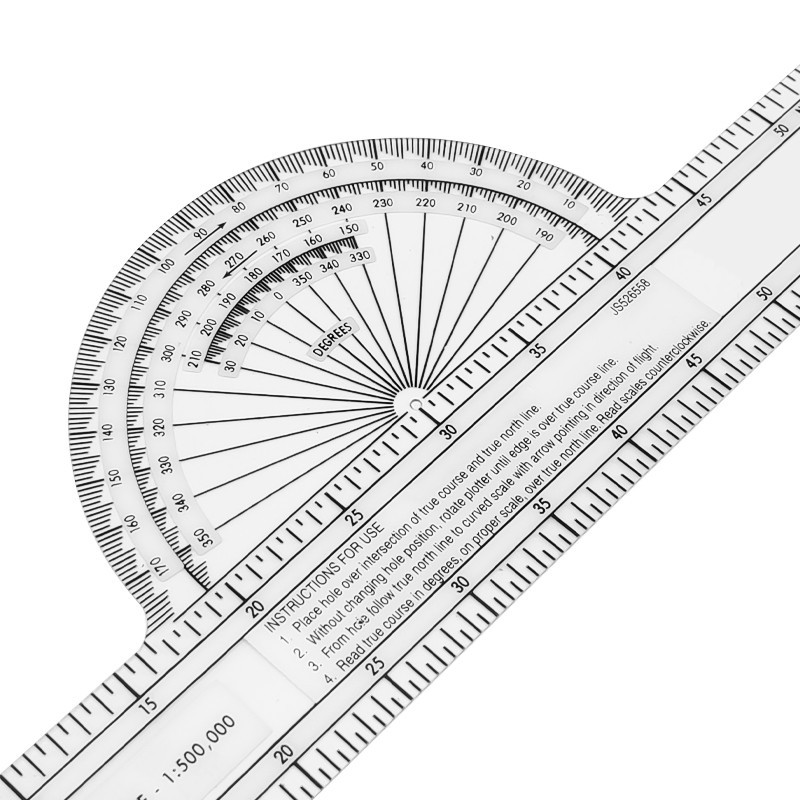

Incorporates a semi-circular protractor and multi-scale calibrated in statute and nautical miles. Manufactured in clear plastic with underprinted white scales. Transportable and provides students with a ready reference on the ground and in the air.
Description Review
Description
Specifications
Size: Length:22.5cm, radius:4.5cm
Net Weight: 11g/pc
Material: PVC
Printing: silk screen printing
Packing: individually packed Vinyl Protective Case or PP bag
Estimated packing detail:
10pcs/ctn MEAS:30cmx21cmx28cm G.W:13kgs
Quantity/outer: 10pcs
Gross weight: 13 kg
Certification: ISO13485, FDA, SGS
Payment Term: 30% deposit paid by TT before production, 70% balance before shipment.
Payment Methods: Bank TT, Western Union, Paypal

Why choose the Sectional Air Navigation Plotter?

1. High-Quality Lexan Material

The material is high-temperature resistant and withstands heat of up to 60 degrees Celsius or 140 F. And the SP-4 Student Plotter is flexible and can bend, instead of being prone to cracking.

2. Sectional, WAC, TAC Scale with Nautical and Statute Mile Delineations

Multi scales come with the sectional plotter. Multi-scale incorporates 1:500,000 readings to 60 nautical miles. The center scale converts between nautical miles and statute miles to 70 miles. In 1:1,000,000 readings to 174 nautical miles and to 320 kilometers. The edge of the scale is simply aligned with the desired track to obtain true or magnetic zero-wind headings and distances from the beacon or start point.

3. Easy to Use - Just 4 Simple Steps

  • Place a hole over the intersection of the true course north line.
  • Without changing the hole position, rotate the plotter until the edge is over the true course line.
  • From the hole follow the true north line to a curved scale with an arrow pointing in direction of flight.
  • Read the true course in degrees, on a proper scale, over the true north line. Read scales counterclockwise

4. Low Cost for OEM/Custom

As a professional navigation plotter supplier, we provide OEM services for this small version of the PN-1 Navigation Plotter, and discounts are available for bulk orders. A big customized order comes at a low cost.

B2B Offer: Sectional Plotter

What's your lead time?

For a regular navigation plotter, our lead time is 1-3 days. If you're going to customize the SP-4 student sectional plotter and bigger order, it will take 10-20 days to complete the order.

Do you offer samples?

Yes, we basically offer a sample for the regular air navigation plotter. For more details, please contact us to discuss more.
